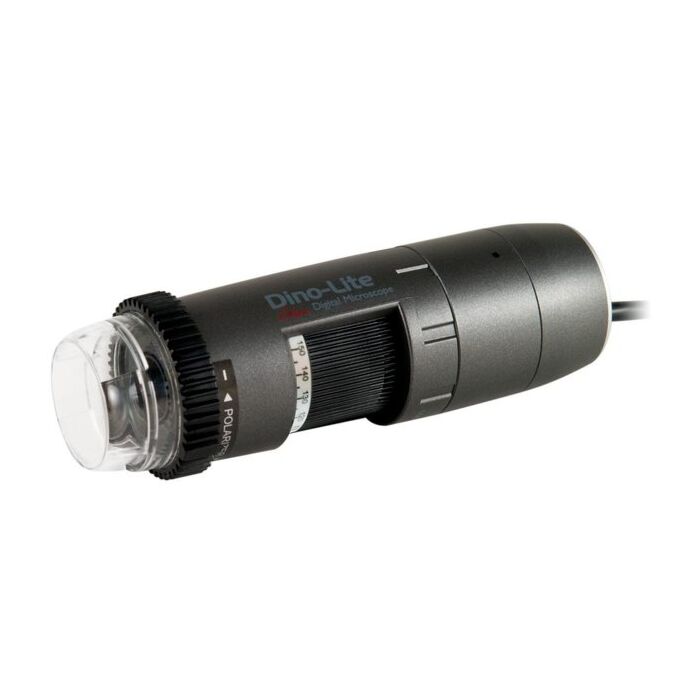

Digitale PC-Microscoop Dino-Lite Edge AM4115ZTL met lange werkafstand en Polarisatiefilter
Digitale PC-Microscoop Dino-Lite Edge AM4115ZTL met lange werkafstand en Polarisatiefilter.
1.3 Megapixel resolutie (1280x1024)
Flexibiliteit dankzij verwisselbare kapjes
10-140x Vergroting
Lange werkafstand & Polarizer (anti-reflectie)
Het uitgebreide vergrotingsbereik (10-140x), grote field of view en de werkafstand tot 23 cm maken de AM4115ZTL het ideale model voor alle situaties waar een grotere afstand tussen het object en de microscoop benodigd is, of wanneer er onder de microscoop gewerkt dient te worden (zoals reparatie, precisie assemblage etc.)
Dino-Lite range: Dino-Lite Edge
Lighting
Light/ LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter:IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes
Optics
Magnification: 10-140x
Macro zoom: No
Working distance: Long
Lens type: Glass with anti-reflection coating
Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps
Compatibility
Interface: USB 2.0
Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows):
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC
Housing
Housing material: Composite/ plastic housing
Magnification lock: Yes
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 105g
Cable length:1.8m
Features
Special feature: No
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No
Information
Package contents:
Microscope, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information: 2 years European warranty
Regulatory approval:CE, FCC, ROHS
Productomschrijving
Digitale PC-Microscoop Dino-Lite Edge AM4115ZTL met lange werkafstand en Polarisatiefilter.
1.3 Megapixel resolutie (1280x1024)
Flexibiliteit dankzij verwisselbare kapjes
10-140x Vergroting
Lange werkafstand & Polarizer (anti-reflectie)
Het uitgebreide vergrotingsbereik (10-140x), grote field of view en de werkafstand tot 23 cm maken de AM4115ZTL het ideale model voor alle situaties waar een grotere afstand tussen het object en de microscoop benodigd is, of wanneer er onder de microscoop gewerkt dient te worden (zoals reparatie, precisie assemblage etc.)
Dino-Lite range: Dino-Lite Edge
Lighting
Light/ LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter:IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes
Optics
Magnification: 10-140x
Macro zoom: No
Working distance: Long
Lens type: Glass with anti-reflection coating
Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps
Compatibility
Interface: USB 2.0
Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows):
BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC
Housing
Housing material: Composite/ plastic housing
Magnification lock: Yes
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 105g
Cable length:1.8m
Features
Special feature: No
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No
Information
Package contents:
Microscope, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information: 2 years European warranty
Regulatory approval:CE, FCC, ROHS
